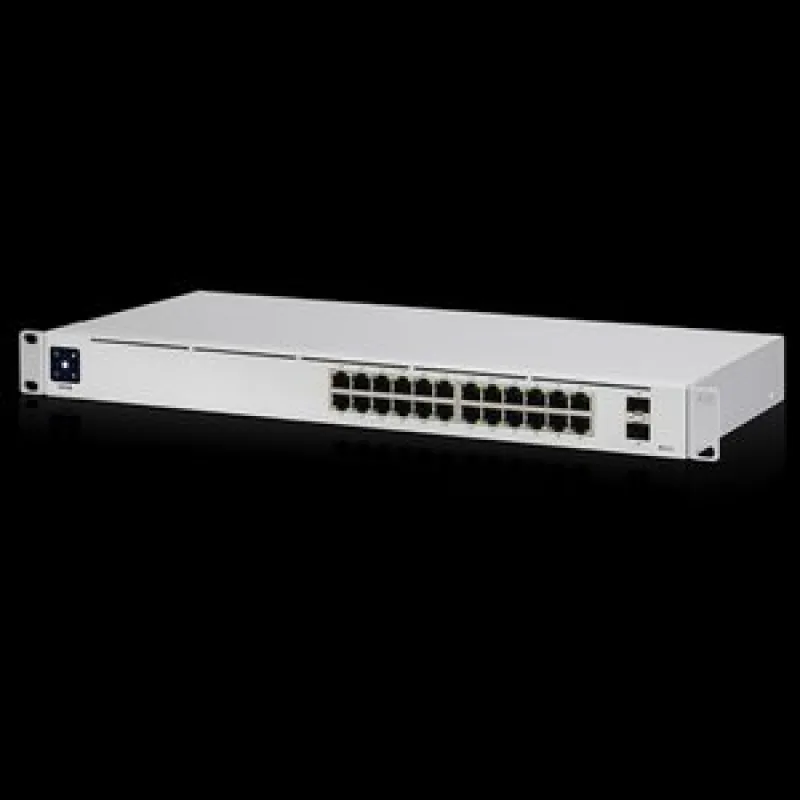

Ubiquiti UniFi switch Gen2 USW-24-POE 24x1000Mbps + 2x SFP PoE/PoE+ Fanless (95W)

Technical Specifications Mechanical Dimensions 442 x 200 x 44 mm (17.4 x 7.9 x 1.7") Weight Without mounting brackets: 3 kg (6.6 lb) With mounting brackets: 3.1 kg (6.8 lb) Enclosure material SGCC steel Hardware Management interface Ethernet In-Band Networking interface (24) GbE RJ45 ports (2) 1G SFP ports PoE interface (16) PoE/PoE+ (Pins 1, 2+; 3, 6-) Total non-blocking throughput 26 Gbps Switching capacity 52 Gbps Forwarding rate 38.69 Mpps Power method Universal input, 100—240V AC, 50/60 Hz Power supply AC/DC, internal, 120W Supported voltage range 100—240V AC Max. PoE wattage per port by PSE PoE+: 32W Voltage range PoE mode PoE: 44—57V PoE+: 50—57V ESD/EMP protection Air: ± 16kV, contact: ± 12kV LCM display (1) 1.3" touchscreen Button Factory reset Shock and vibration ETSI300-019-1.4 Standard Ambient operating temperature -5 to 40° C (23 to 104° F) Ambient operating humidity 10 to 90% noncondensing Certifications CE, FCC, IC Switching Features Layer 2 features IGMP snooping STP / RSTP with priorities and port-level disable Port isolation Storm control Voice VLAN Port mirroring LACP port aggregation Multicast / broadcast rate limiting MAC address blocking Flow control 802.1X control Jumbo frames Proprietary loop protection DHCP snooping / guarding Egress rate limit LLDP-MED Port restricted by MAC Device isolation with ACLs LEDs System Status Ethernet PoE Speed/link/activity SFP Link/activity Application Requirements UniFi Network Version 7.2.94 and later power consumption 25W (Excluding PoE output) Total available PoE 95W Max.
